SpringBoot集成swagger2教程

1 第一步添加依赖

maven 引入pom 直接集成spring boot

    com.spring4all
    swagger-spring-boot-starter
    1.9.1.RELEASE

2 配置

创建配置类  /test/.* 以路径分组(注意此类要能被Spring ioc扫描到)

@Configuration
@EnableSwagger2
public class Swagger2Config {

    @Bean
    public Docket testConfig(){
        return new Docket(DocumentationType.SWAGGER_2)
                .groupName("testApi")
                .apiInfo(new ApiInfoBuilder()
                .title("管理系统的API文档")
                .description("本文档描述了api接口定义")
                .version("1.0")
                .contact(new Contact("张凯强", "https://zhangkaiq.gitee.io/", "862166318@qq.com"))
                .build())
                .select()
                .paths(Predicates.and(PathSelectors.regex("/test/.*")))
                .build();
    }
}

3 注解用法

实体类Entity

@Data
@AllArgsConstructor
@NoArgsConstructor
@ApiModel(value = "test对象",description = "test对象信息")
public class Test {
    @ApiModelProperty(value = "描述信息id",name = "id",example = "1")
    private Long id;
    @ApiModelProperty(value = "描述信息name",name = "name",example = "张凯强")
    private String name;
    @ApiModelProperty(value = "描述信息age",name = "age",example = "20")
    private Integer age;
}

控制层Controller

@RestController
@RequestMapping("/test")
public class TestController {

        @GetMapping("/index")
    @ApiOperation("没有参数")
    public Test index(){
        return new Test(1L,"张凯强",20);
    }
    @GetMapping("/getTest")
    @ApiOperation("GET传参")
    public Test getTest(@ApiParam(value = "id",required = true,defaultValue = "10")
                        @RequestParam("id")Long id){
        return new Test(id,"张凯强",20);
    }
    @ApiOperation("POST传参")
    @PostMapping("/addTest")
    public Test addTest(@RequestBody Test test){
        return test;
    }
    @ApiOperation("路径传参")
    @DeleteMapping("/deleteTest/{id}")
    public Long deleteTest(@ApiParam(value = "id",required = true,defaultValue = "10")
                           @PathVariable("id")Long id){
        return id;
    }
}

@ApiModel注解实体类(Model)

@ApiModel(value = "test对象",description = "test对象信息")
public class Test{}

@ApiModelProperty注解属性(实体类字段)

@ApiModelProperty(value = "描述信息id",name = "id",example = "1")
private Long id;

@Api 注解@Controller 层也可@RestController

@Api(value = "测试控制层",description = "测试控制层接口API描述!")
public class TestController{}

@ApiOperation注解方法Controller 的方法

@ApiParam 注解参数

@ApiOperation("测试方法")
@GetMapping("/test")
public ObjectJson test(@ApiParam(value = "id", required = true, defaultValue = "1")
                                     @RequestParam(value = "id") Long id)

4 启动测试结果

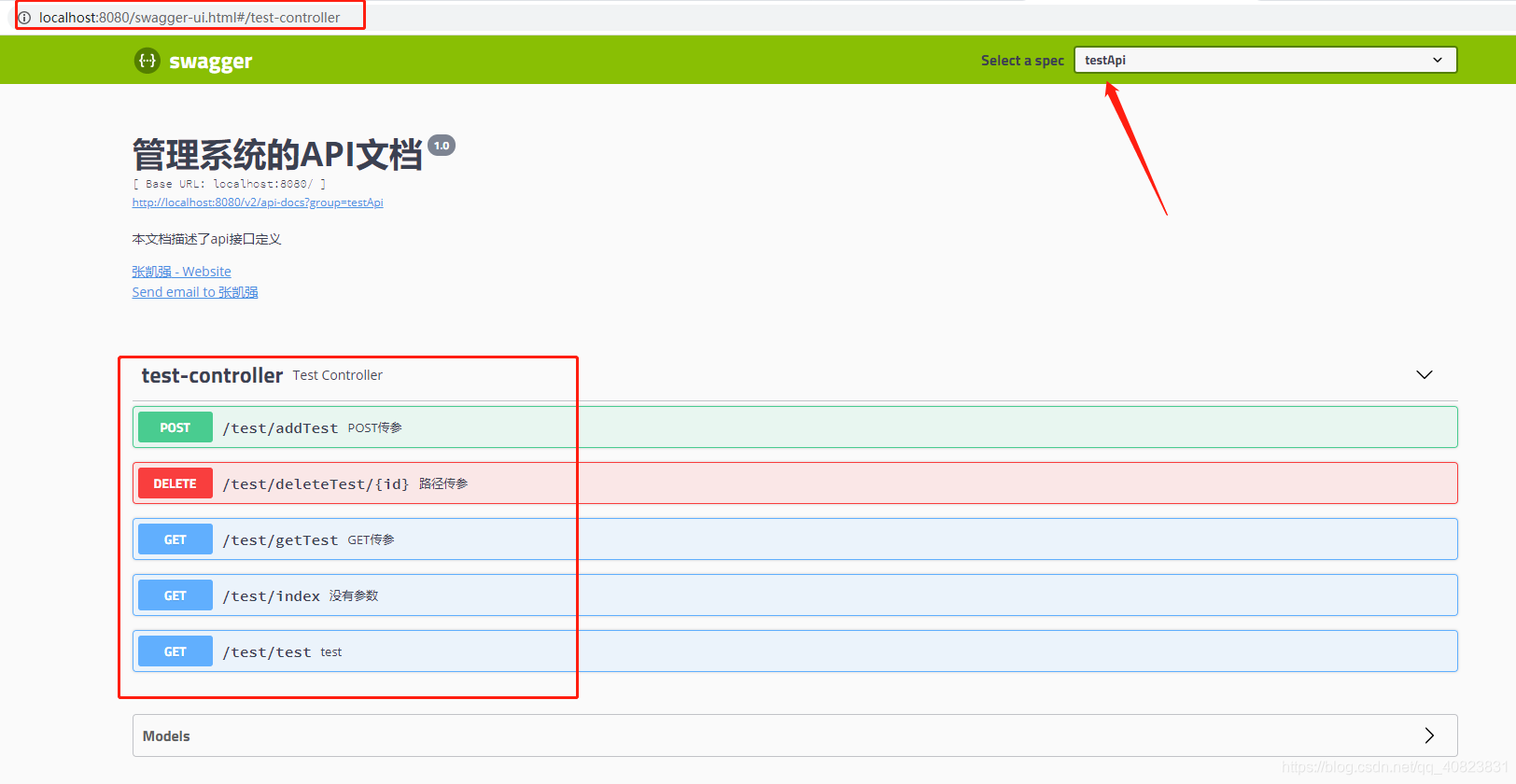

swagger2页面地址 协议://地址:端口/加项目名/swagger-ui.html

http://localhost:8080/swagger-ui.html

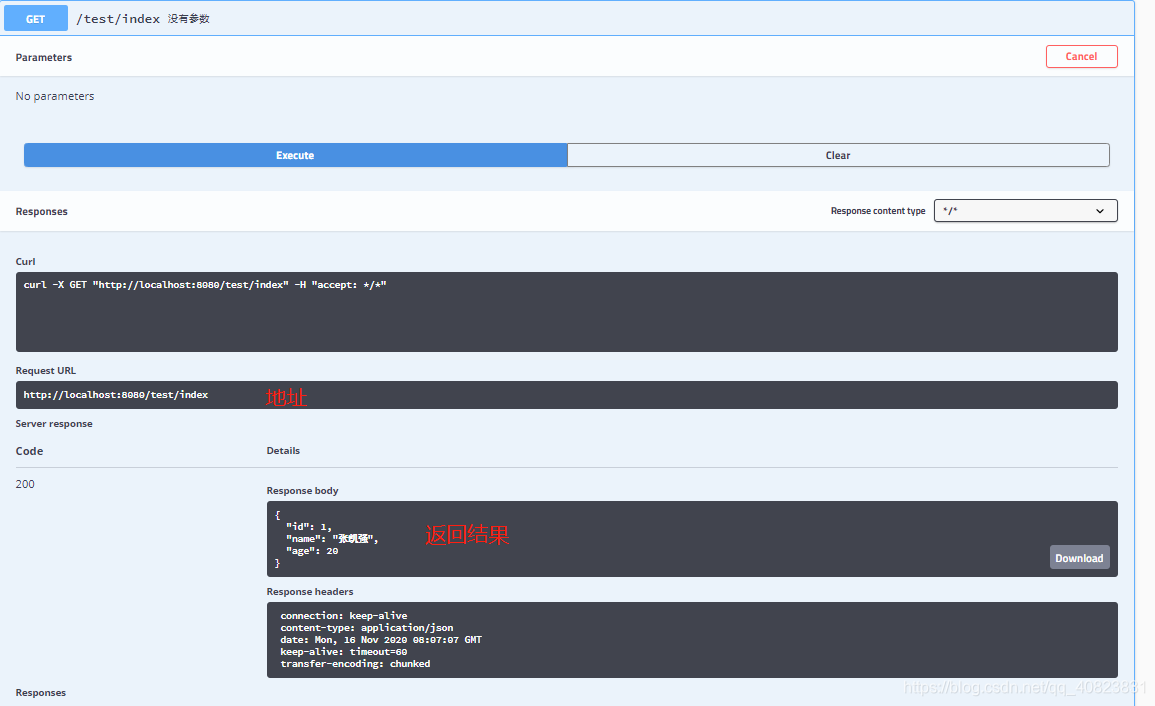

无参GET请求

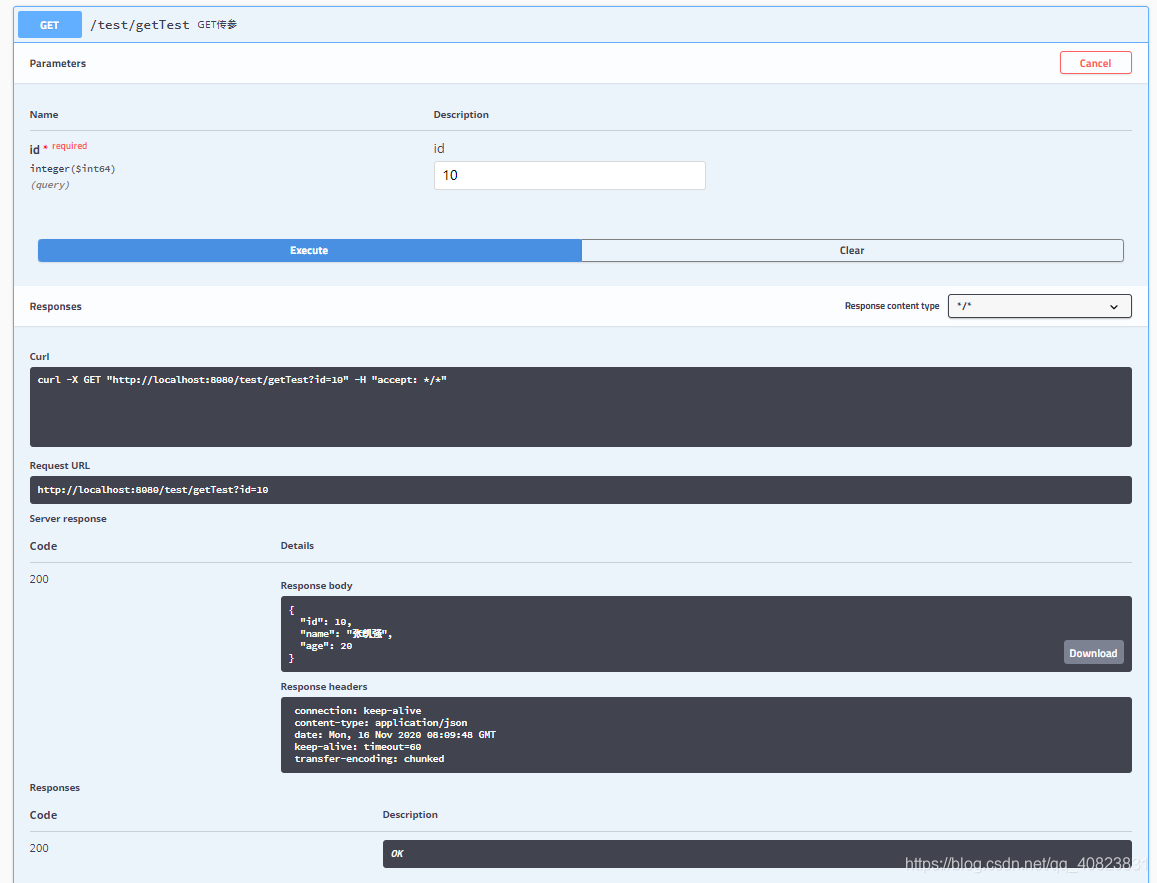

有参数GET请求

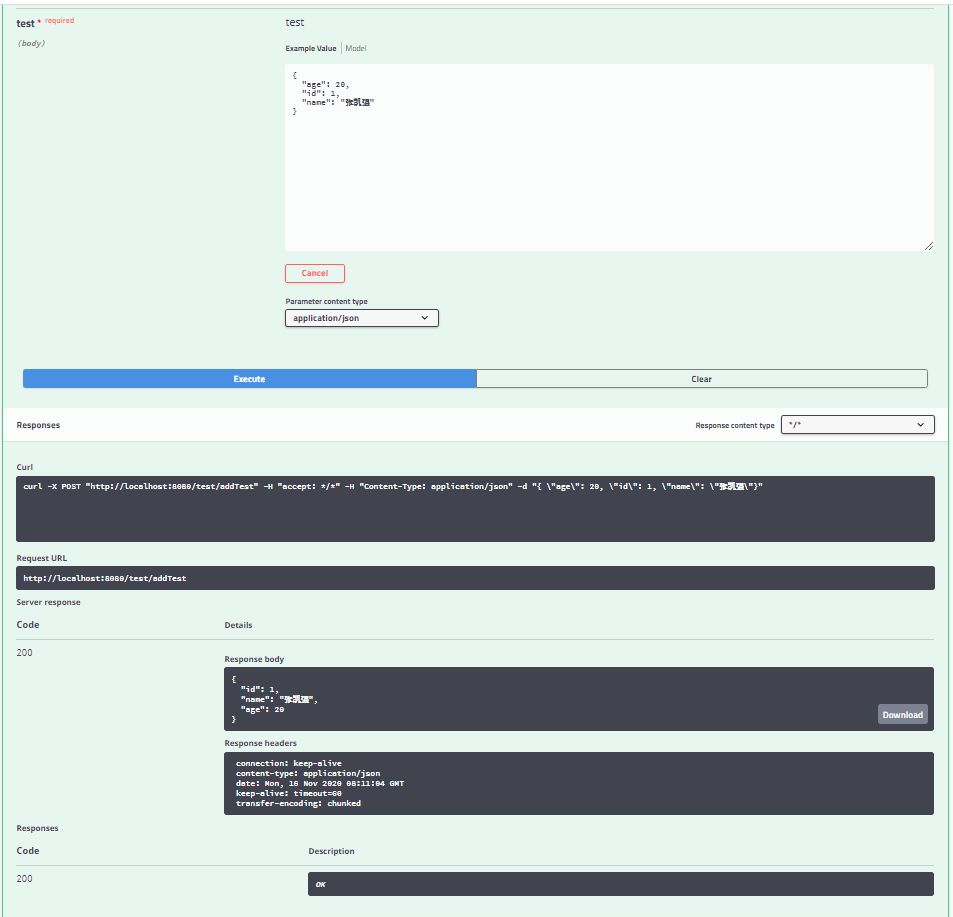

有参POST请求

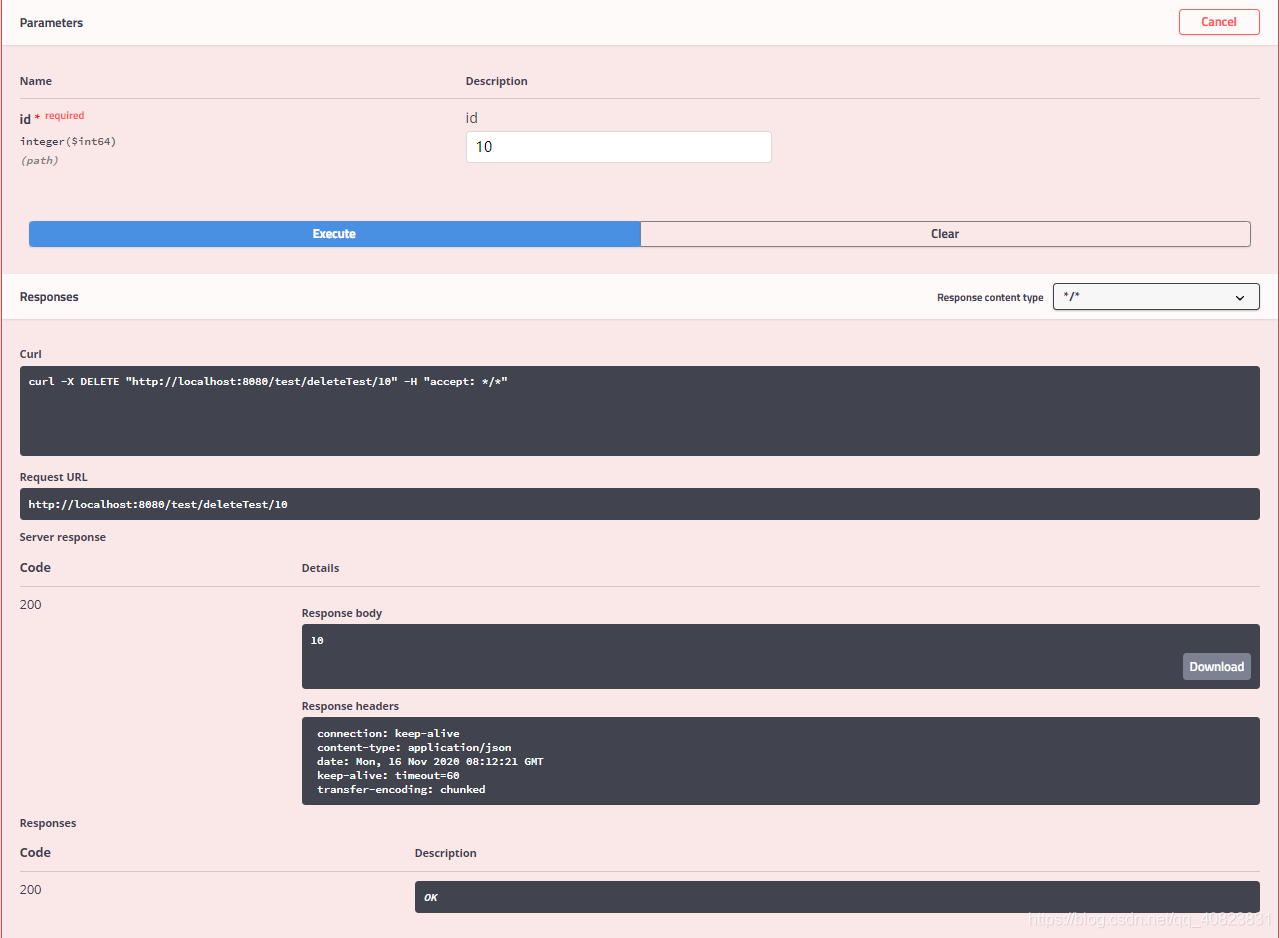

路径参DELETE请求
